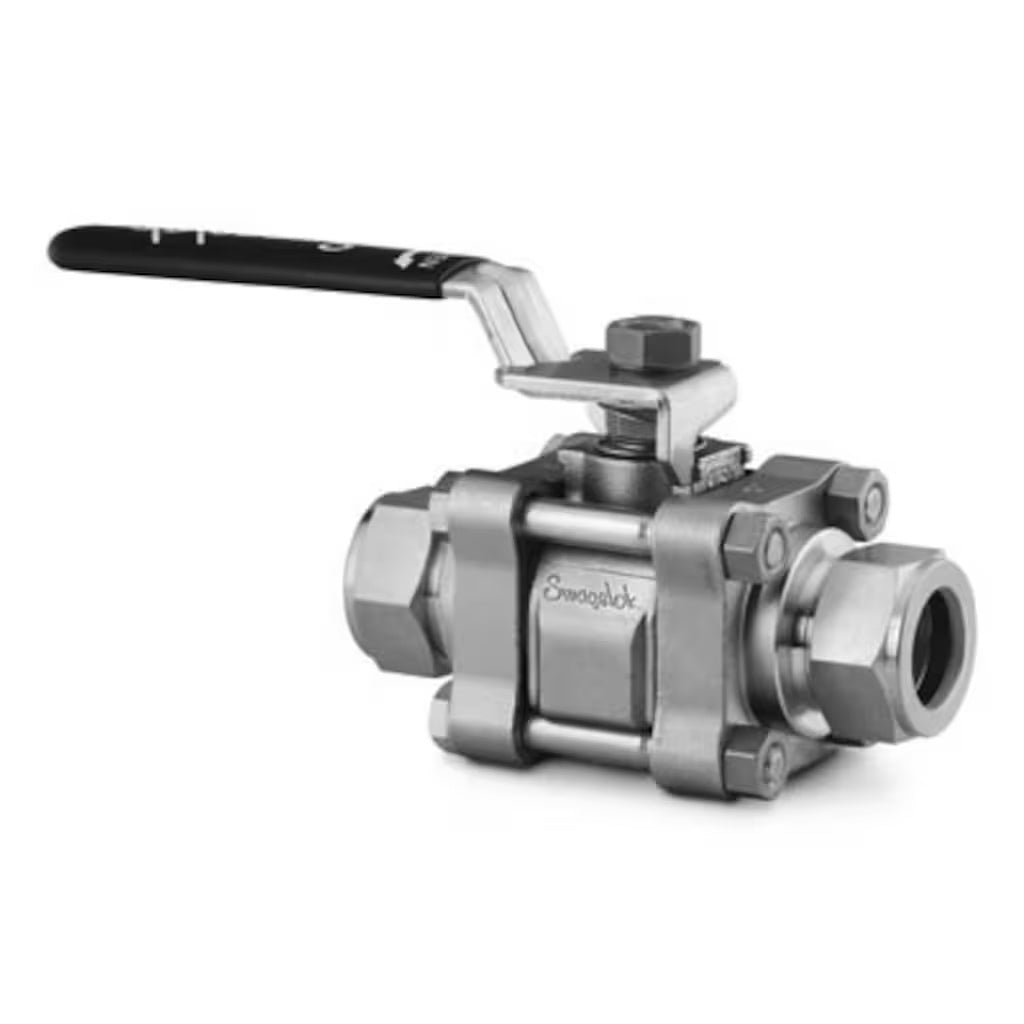

Stainless Steel 3-Piece 60 Series Ball Valve, Reinforced PTFE Seats, 1 1/2 in. Swagelok Tube Fitting
Stainless Steel 3-Piece 60 Series Ball Valve, Reinforced PTFE Seats, 1 1/2 in. Swagelok Tube Fitting
Regular price
$350.00 USD
Regular price
Sale price
$350.00 USD
Unit price
/
per
Shipping calculated at checkout.
Swagelok SS 3-Piece 60 Series Ball Valve 1.5 in. Tube Fitting PTFE
Maximize fluid control in your lab with the Swagelok Stainless Steel 3-Piece 60 Series Ball Valve, featuring reinforced PTFE seats and a 1.5 in. Swagelok Tube Fitting connection. Designed for process and instrumentation applications, this 2-way straight-pattern valve offers reliable on-off control in high-flow systems, such as CGMP processes, chromatography, and large-scale fluid transfer lines. With a maximum CV of 100, a working pressure up to 2200 psig (151 bar), and a temperature range up to 400°F (204°C), it’s perfect for demanding lab environments requiring high flow capacity.
Manufactured by Swagelok, the 60 Series valve features a coned-disc, spring-loaded seat, live-loaded two-piece chevron stem packing, and a three-piece swing-out design for easy maintenance and long-term reliability. The reinforced PTFE seats and Fluorocarbon FKM flange seal ensure excellent sealing and durability, making this valve ideal for lab professionals needing precision and safety in fluid control systems.
-
Key Features:
- Material: 316 Stainless Steel (SS) body with reinforced PTFE seats
- Connection: 1.5 in. Swagelok Tube Fitting
- Maximum CV: 100 for high flow capacity
- Working Pressure: Up to 2200 psig (151 bar)
- Temperature Range: Up to 400°F (204°C)
- Design: 3-piece swing-out for easy maintenance; 2-way straight pattern
Important Notes:
- Ideal for on-off control in high-flow process and instrumentation systems.
- For applications exceeding 2200 psig or 400°F, consult our team for alternative Swagelok valve options.
Explore More:
- Download detailed resources below
